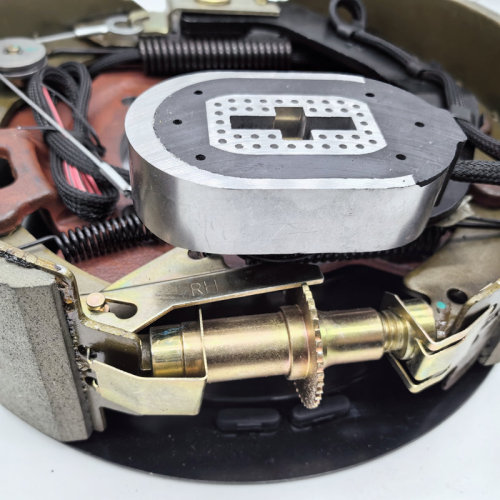

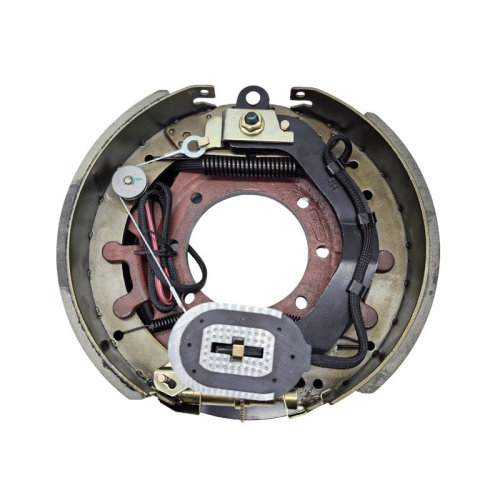

Assembly electric brakes on dump trailers play essential roles in offering accurate braking control, guaranteeing stability and safety while transporting heavy loads, and ensuring smooth braking even on challenging terrain. Their simple operation and replacement, along with their standard design and size, improve user convenience and cost efficiency. These heavy-duty, premium-quality 12-1/4"x3-3/8" dump trailer brakes fit most 10,000 lbs axles and 15" or larger wheels on the market. They have a 7-bolt mounting flange bolt pattern and are for use with a 12-1/4" inside diameter and 3-3/8" depth drum. Both left-hand (driver side) and right-hand (passenger side) types are provided as one kit. These assembly electric trailer brakes are fully assembled with shoes, springs, and magnets attached and are ready to be mounted.
| SKU | Item Name | Specifications | Operation | |||
| A | B | Braking Position | Load Capacity(lbs) | |||
